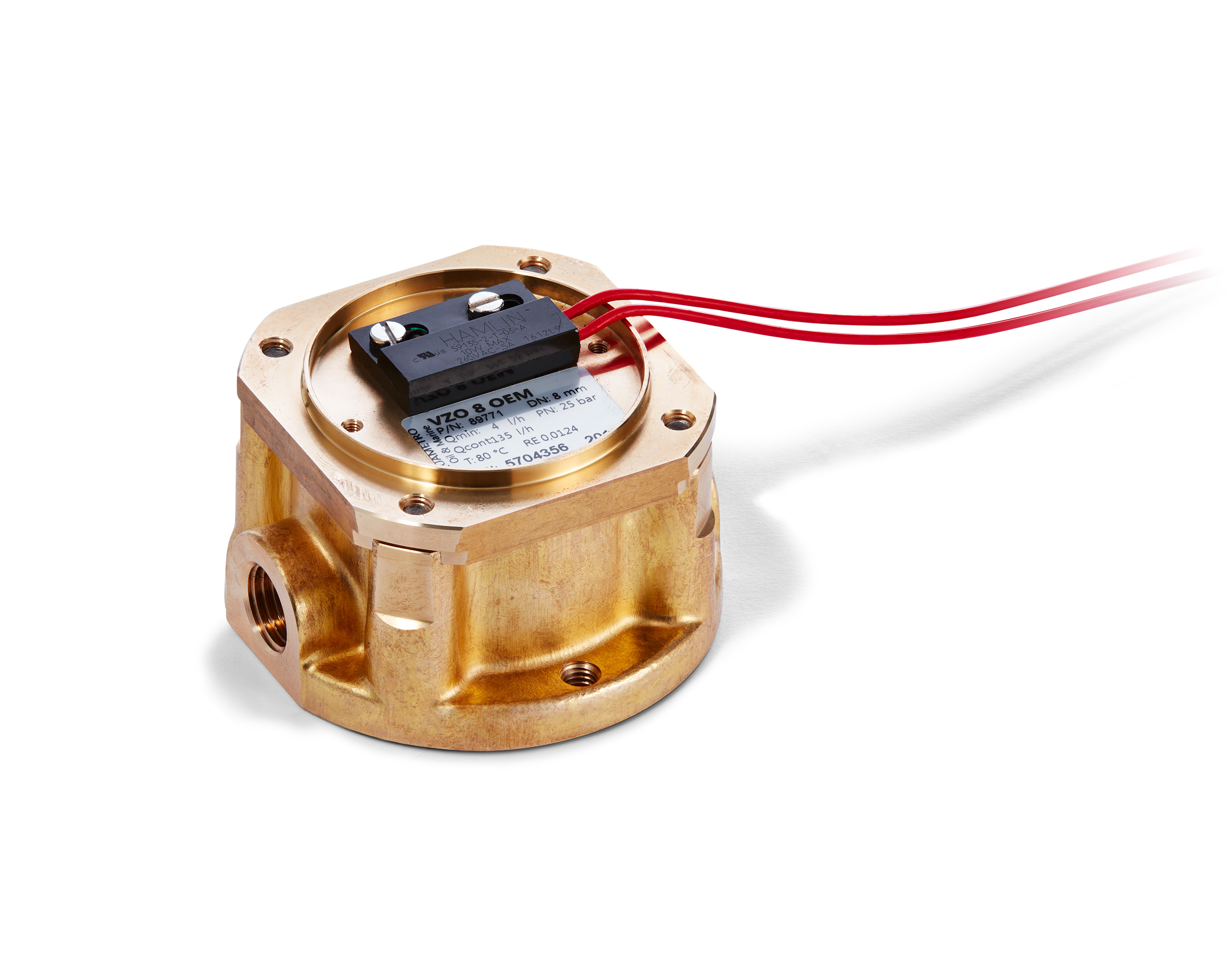

Positive Displacement Flowmeter – VZO- 04 , 08
Application：
CONTOIL® fuel oil meters work on the volumetric principle of rotary piston meters (positive displacementmeters).
The main features of this measuring principle are large measuring ranges, high accuracy, suitability for high viscosities and independence from power supply; flow disturbances do not influence proper operation.
Leading manufacturers of oil burners and operators of heating systems, ships or diesel engines rely on CONTOIL® fuel oil meters – and with good reasons.
Construction：
Body : Brass
Piston : Aluminium
Description：
Meter Size: 4 mm – 8 mm
Accuracy: +/-1% of Reading
Roller Display : VZO 4 – 99999.999 ; VZO 8 – 999999.99
No Display : Reed Switch Output
Max. Pressure: 25 Kg/cm2
Max. Temperature: 80 oC
Connection : G – Thread (Inside)
