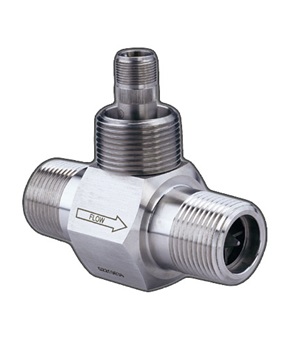

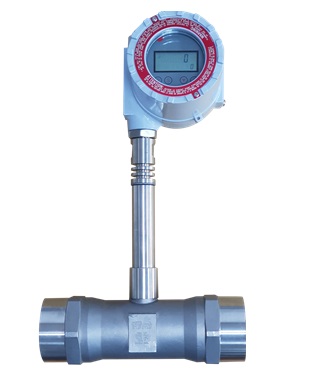

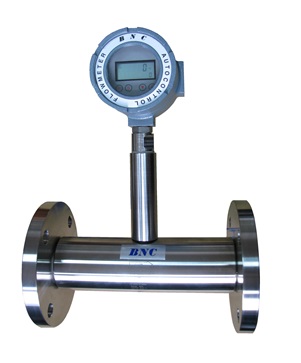

Turbine Flowmeter – BT series
Fluid entering the meter passes through the inlet flow straightener which reduces its turbulent flow pattern and improves the fluid’s velocity profile.
Fluid then passes through the turbine blades causing it to rotate at a speed proportional to the fluid velocity.
As each blade passes through the magnetic field, created at the base of the pickoff transducer, AC voltage (pulse) is generated in the pickup coil.
These impulses produce an output frequency proportional to the volumetric flow through the meter.
The output frequency is used to represent flow rate and/or totalization of fluid passing through the turbine flow meter.
Application：
Suitable for viscous fluid, as Gasoline, Kerosene, Light oil, Heavy Oil, Chemical flild .
Construction：
Body : SUS316
Turbine : SUS316
Description：
Meter Size: 1/2″ ~ 3″ (15 mm – 80 mm)
Accuracy: +/-1% of Reading
Display(LRT) : 8 digit Totalizer & 5 digit flowrate or
8 digit Totalizer& 5 digits Reset Counter
Output : Pulse
Output(LRT ) : Pulse , 4-20 mA , RS485
Max. Pressure: 300 Kg/cm2
Max. Temperature: 230oC
Connection: Find in Instruction
